Name: Ductile iron butterfly valve 1145 wafer CF8M/Teflon® +silicone DN32-40
Brand: TTV
SKU: 9643
Price: 298.81428571429 EUR
Availability: InStock

Ductile iron butterfly valve 1145 wafer CF8M/Teflon® +silicone DN32-40

Ductile iron butterfly valve 1145 wafer CF8M/Teflon® +silicone DN32-40

€298.81 (excl. btw)

The 1145 series valve is a TTV wafer butterfly valve, with a ductile iron body, PTFE seat with silicone liner, and stainless steel disc , suitable for isolating or regulating corrosive fluid networks (acids, etc.).

In stock Subject prior to sales
Categories : Vlinderkleppen

Documenten:

Certificate of conformity	Download
Manual	Download
Manual FR	Download
Technical datasheet	Download
Technical datasheet FR	Download

Description
Technical Specifications

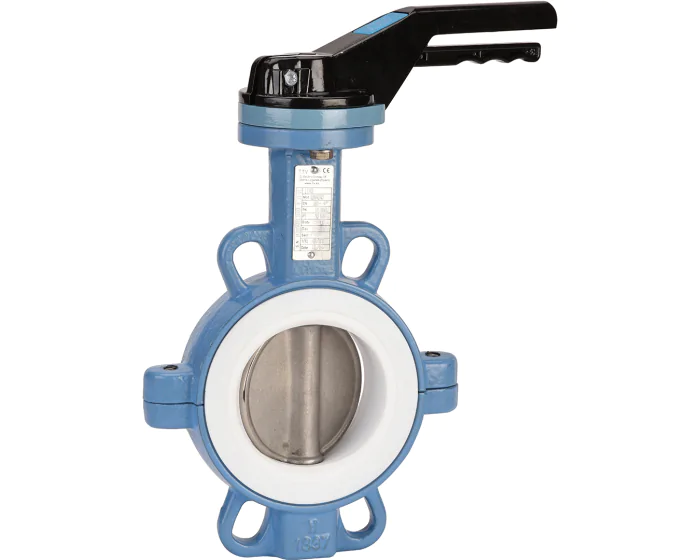

Reference 1145: TTV wafer butterfly valve Our reference 1145 is a TTV wafer type butterfly valve most often used with corrosive fluids. This two-piece body valves comes in sizes DN32/40 to DN300, and is mounted between flanges PN10/16 and class 150 (PN20). It is made up of Rilsan-coated EN-GJS-500-7 ductile iron body (the colour is RAL 5024 and the paint is 250-300 microns thick), a CF8M stainless-steel disc, and a PTFE seat with an inner silicon core for greater flexibility and higher temperatures resistance. The benefits of PTFE are its compatibility with multiple types of fluids and its outstanding corrosion resistance. This TTV wafer type butterfly valve also benefits from specific technical features as listed below: Long neck for isolation Full crossing stem Lever or gearbox (from DN250) ISO 5211 mounting pad In terms of thermal resistance, this valve can withstand a wide range of temperatures with a minimum of -25 °C and up to a maximum of +200 °C. It will also tolerate a pressure of 16 bar up to DN150, and 10 bar for bigger diameters.

Specification	Value
DN inches NPS	1''1/2
Option certificate 3.1	Yes
DN metric	40/49
Construction standard	ISO 10631 - EN 593
Type of paint	Rilsan
Paint coating thickness (µm)	250.00
EN face-to-face standard	EN 558 Series 20
DIN face-to-face standard	DIN 3202 Part.3 Series K1
ISO face-to-face standard	ISO 5752 Series 20
Brand	TTV
Tightness test standard	EN 12266-1 Rate A
Type of seat	Removable
Notch plate	Yes
Opening device	Handle
Application	Industry
ATEX atmosphere	Group II Cat. 2G/2D
Shaft/stem matérial	Stainless steel 17 4-PH (630)
Lockable	Yes
Square, star (mm)	Square 8 mm
ATEX compatible	Yes
Torque (Nm)	25
DN	DN40 - 1''1/2
Face to Face (mm)	33.0
Fluid	Acids
Kv (m³/h)	36.0
Seat	PTFE
Body material	Ductile iron
Disc material	Stainless steel ASTM A351 CF8M
ISO pad 5211	F05/F07
PS (bar)	16
Connections	Between flanges PN10/16 #150
TS max (°C)	200
TS min (°C)	-25
Butterfly valve design	Concentric
Wafer/lug	Wafer
ATEX zone	1 & 21. 2 & 22
Through shaft	Yes
Warranty period	10 years
CE	Yes
Handle material	Aluminium
